Chapter 5 · Evaluation and Analysis
the sum of the critical contribution Dcrit and the background contribution Dbg, according to [10]:

The symbols denote: ηbg, the background contribution to the viscosity; qc, the crossover-correction wave number; the modified crossover wave number q̃c as defined in the original equation; x = qξ; ΩK(x), the Kawasaki function (see Eq. 3.66); and ξ = ξ₀ t−0.63.
In the experimentally accessible range, the Kawasaki function is approximately unity (see Figure 5.14). The critical contribution therefore simplifies to:

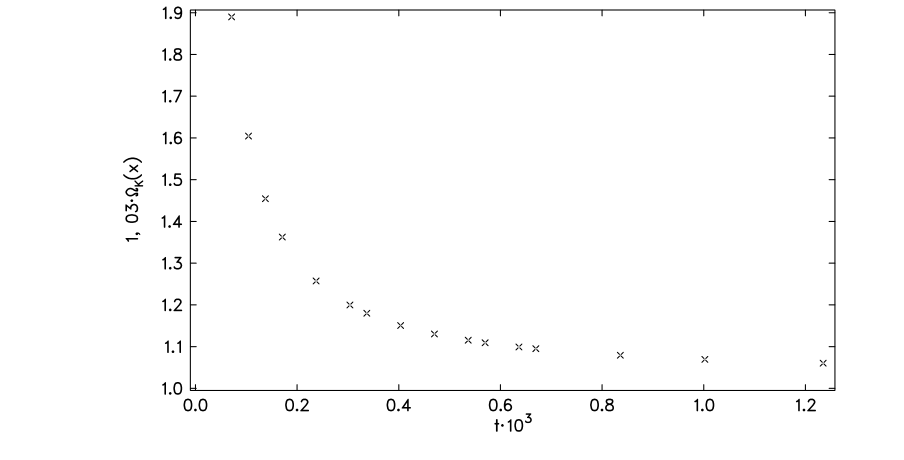

Figure 5.14. Kawasaki function and the actual measurement temperatures.
