Figure 5.16. Composition of the critical diffusion coefficient.

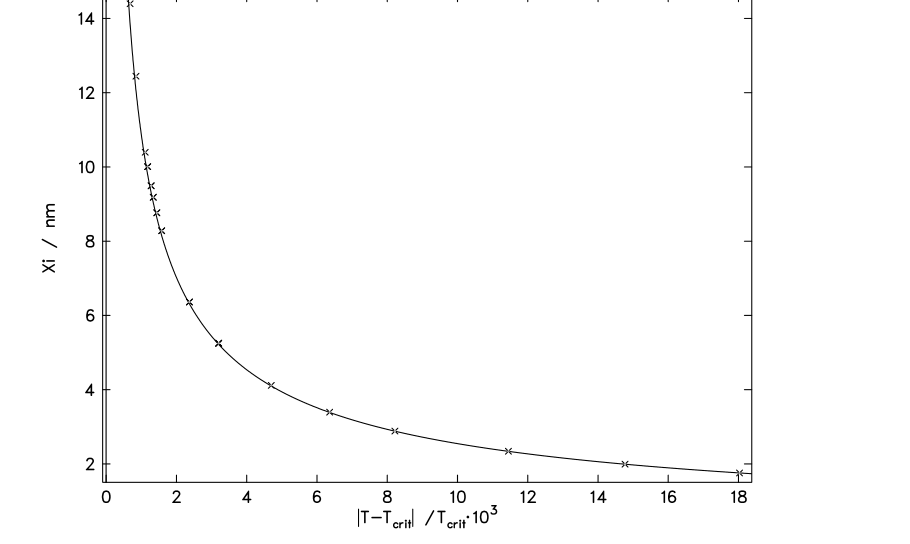

Figure 5.17. Correlation length ξ of the critical concentration fluctuations.

5.6 Verification of the scaling function

5.6.1 Amplitude A_BF and ω_BF as free parameters

After fitting the temperature-dependent spectra according to Eq. (3.46), the following procedure is used for the evaluation:
