3 Experimental Methods

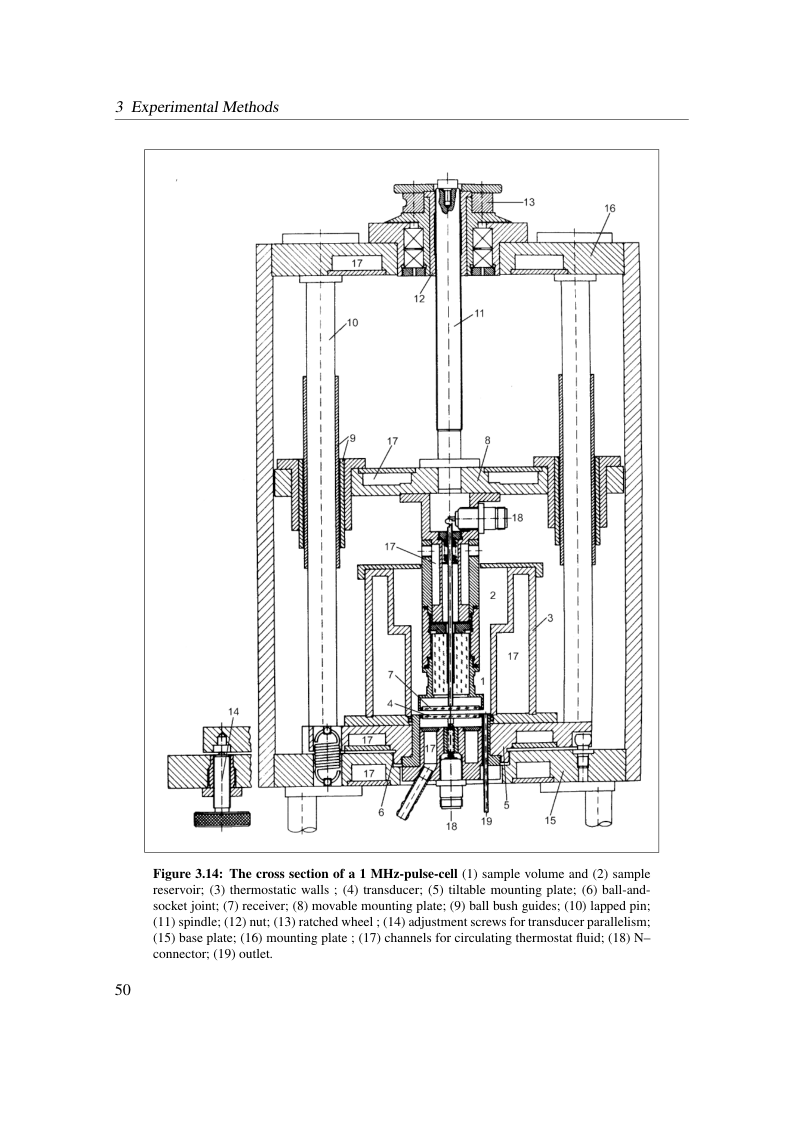

Figure 3.14: The cross section of a 1 MHz-pulse-cell (1) sample volume and (2) sample reservoir; (3) thermostatic walls ; (4) transducer; (5) tiltable mounting plate; (6) ball-and- socket joint; (7) receiver; (8) movable mounting plate; (9) ball bush guides; (10) lapped pin; (11) spindle; (12) nut; (13) ratched wheel ; (14) adjustment screws for transducer parallelism; (15) base plate; (16) mounting plate ; (17) channels for circulating thermostat fluid; (18) N– connector; (19) outlet.
