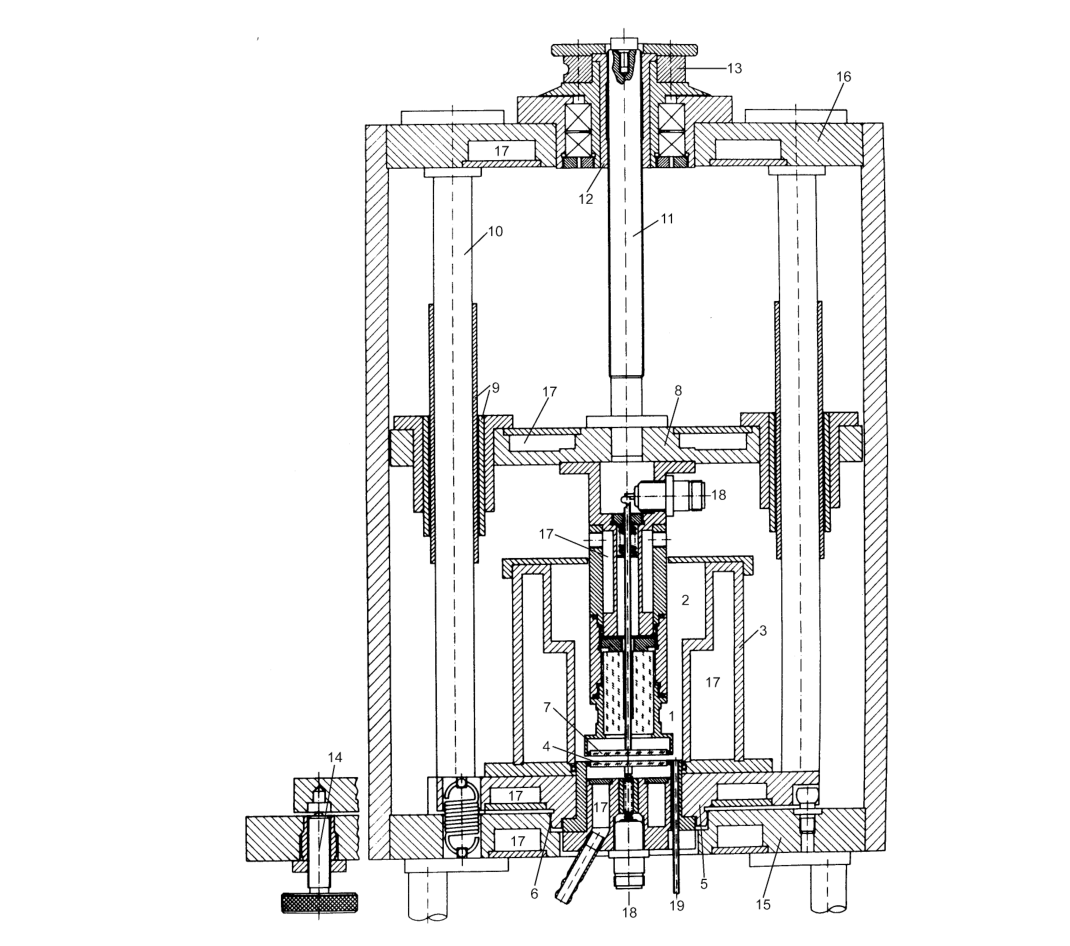

Figure 4.10 · Cross-section of the 1-MHz ultrasonic transmission cell

Figure 4.10. Cross-section of the 1-MHz ultrasonic transmission cell. (1) Measurement volume with reservoir (2); (3) thermostating jacket; (4) transmitting transducer; (5) tiltable mounting plate; (6) ball joint; (7) receiving transducer; (8) movable mounting plate; (9) ball guide; (10) guide rod; (11) spindle; (12) nut; (13) pulley driving (11); (14) screws for parallel alignment; (15) base plate; (16) top plate; (17) thermostating channels; (18) N-type standard connectors; (19) drainage cannula.

4.4 High-resolution sound-velocity measuring cell for liquids

The resonator and ultrasonic transmission cells described above are also suitable for determining sound velocity. In the case of resonators, however, two separate measurements are always required, which automatically introduces an error because it cannot be guaranteed that the precise environmental conditions can be reproduced in the second measurement.
